Introduction
Remember the previous
WinFast A250 Ultra TD
? That's based on the most powerful GPU on earth right now, NVIDIA's GeForce4 Ti 4600. Along with it, NVIDIA also introduced a slightly underclocked version which is based on the same core. The GeForce 4 Ti 4400 is a slightly inferior GPU that features all the latest technology found on the GeForce4 Ti 4600 but only running at a lower speed. Does that mean there's the chance of getting a Ti 4400 and overclocking it to Ti 4600 speeds? Most likely. We think it should be the next hot favorite after the GeForce3 Ti 200.
The WinFast A250 TD's core is clocked at the default 275MHz while the memory is also clocked at 275MHz (at DDR speed, it should be 550MHz). The card is basically built out of the same components as that of the A250 Ultra TD except for a duller stainless steel I/O faceplate and of course, a lower price. Judging from the core and memory speeds alone, it does seem that there's a good chance of overclocking them to the GeForce4 Ti 4600 default speed. If the elaborate heatsinks and fans are doing their job well, we should be able to overclock the card successfully.

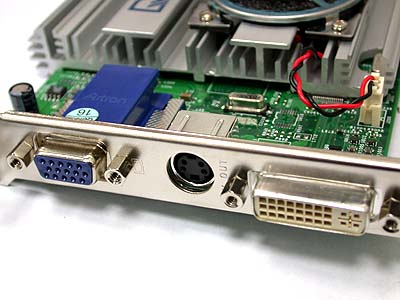

Same set of connectors as its bigger brother (A250 Ultra). However, you'll be getting a plain stainless steel faceplate.
|
The Leadtek WinFast A250 TD uses Samsung's 3.6ns DDR graphics memory.
|
The technical specifications of the card are shown in the table below :-
Leadtek WinFast A250 TD
| Graphics Engine |
- NVIDIA GeForce4 Ti 4400 GPU
- nfiniteFX II Engine
- Dual programmable Vertex Shaders
- Procedural deformations
- Programmable matrix palette skinning
- Real-time hair and fur shading
- Keyframe animation interpolation
- Morphing
- Fog effects : Radial, Elevation, Non-linear
- Lens effects : Fish eye, Wide angle, Fresnel effects, Water refraction
- Programmable Pixel Shaders
- Accuview Antialiasing
- nView Display Technology
- Lightspeed Memory Architecture II engine
- Four independent memory controllers
- Lossless Z-compression
- Z-occlusion culling
- Fast Z-clear
- Auto-precharge
- Shadow Buffers
- Integrated hardware lighting engine
- DirectX and S3TC texture compression
- Dual cube environment mapping capability
- Hardware accelerated real-time shadows
- True, reflective bump mapping
- High-performance 2D rendering engine
- High-quality HDTV/DVD playback
- High-definition video processor (HDVP)
- 125M triangles/sec
- 4.4 billion texels Fill Rate (AA sample/sec)
- Default clock speed 275/550 (core/DDR memory)
- Up to 128MB DDR Memory
- 8.8 GB/sec Memory Bandwidth
- Microsoft DirectX 8.x optimizations and support
- OpenGL 1.3 optimizations and support
|
| Graphics Memory |
|
| RAMDAC |
|
| Connectors |
- 15-pin D-sub VGA connector
- 1x DVI connector
- 1x S-Video TV-out connector
|
| Driver |
- Driver support for Windows 98/98SE/Me/NT 4.0/2000/XP
- NVIDIA Unified Driver Architecture (UDA)
- Fully compliant professional OpenGL 1.3 API with NVIDIA extensions
|
| Other Information |
- AGP 1.1 slot required (1.5V)
- 1 PCI-assigned IRQ Required
|
